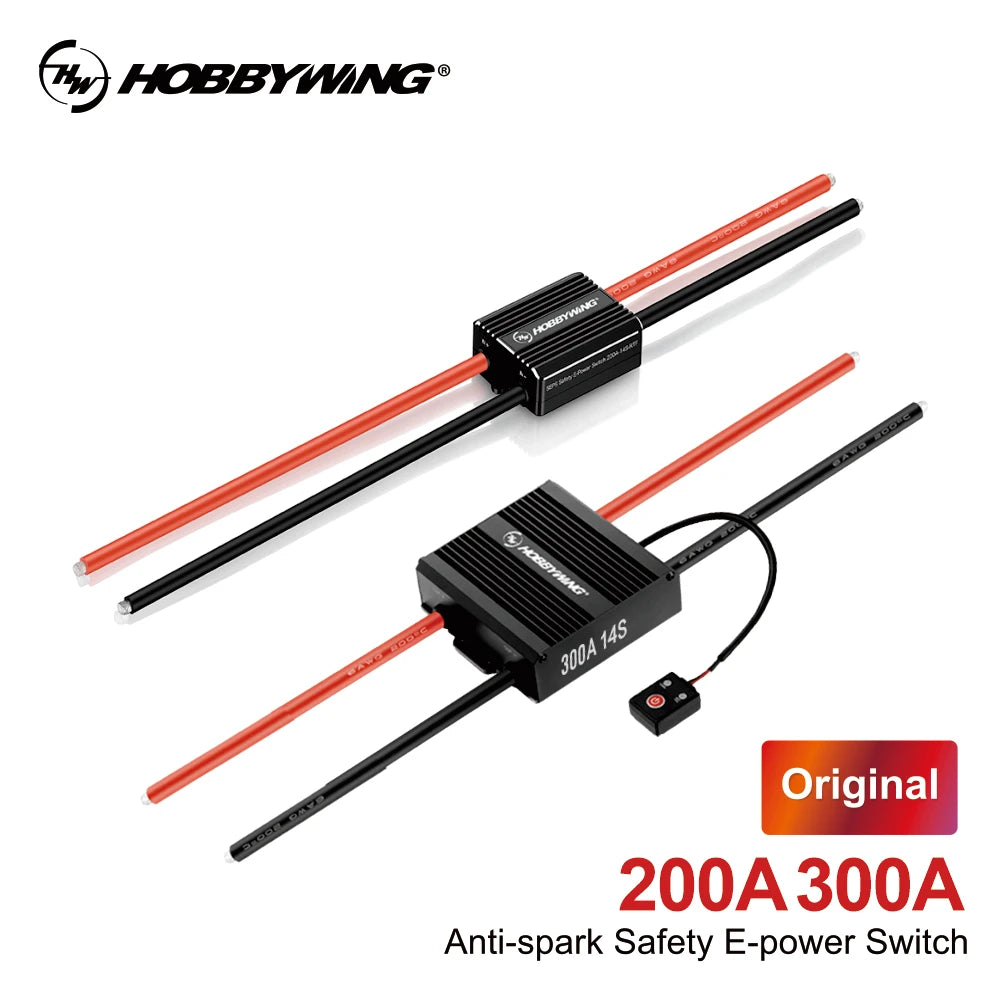

Hobbywing High-pressure Safety E-power Switch 200A 14S 300A 18S 36V-78.3V IP67 Anti-Spark Technology 4S The Delayed
Hobbywing High-pressure Safety E-power Switch 200A 14S 300A 18S 36V-78.3V IP67 Anti-Spark Technology 4S The Delayed
Specifications
Description

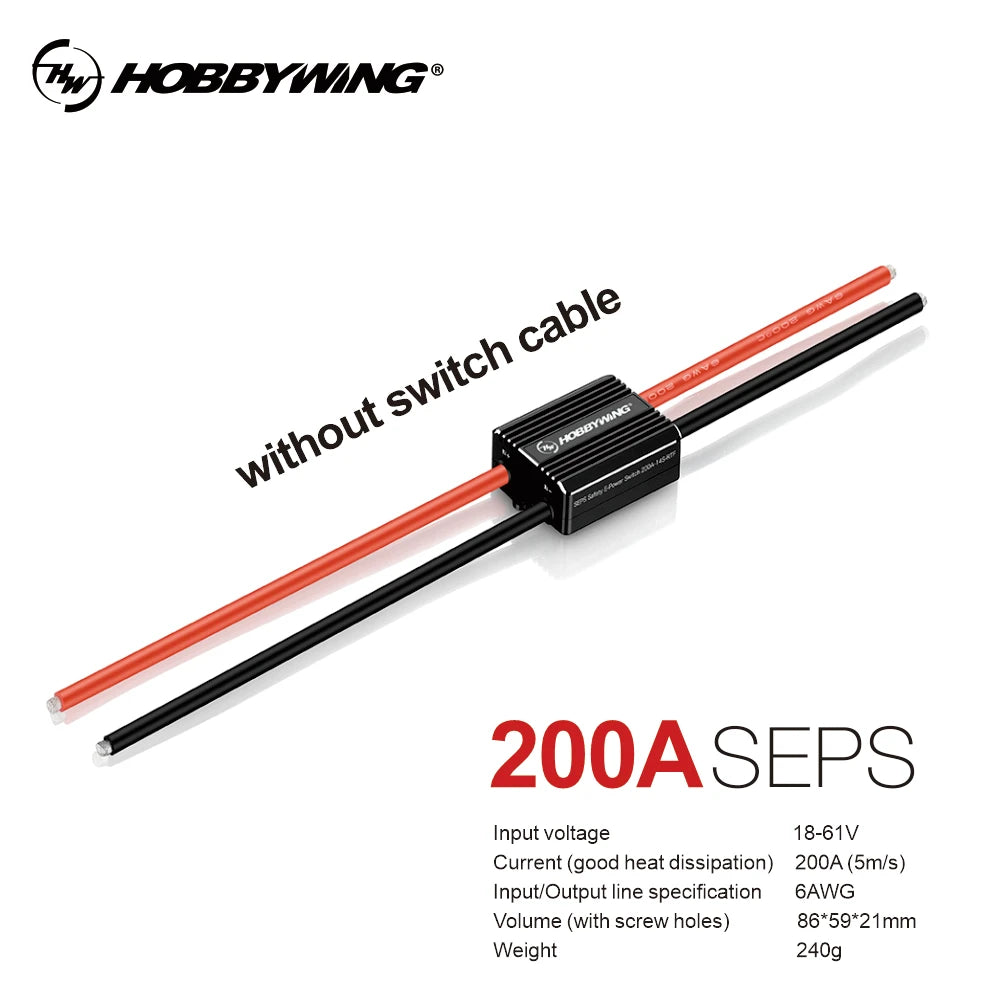

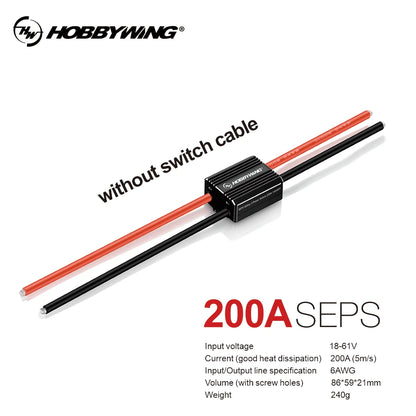

200A 14S
without switch cable ，
14S-200A
18-61V
200A
8AWG
86*59*21mm
240g

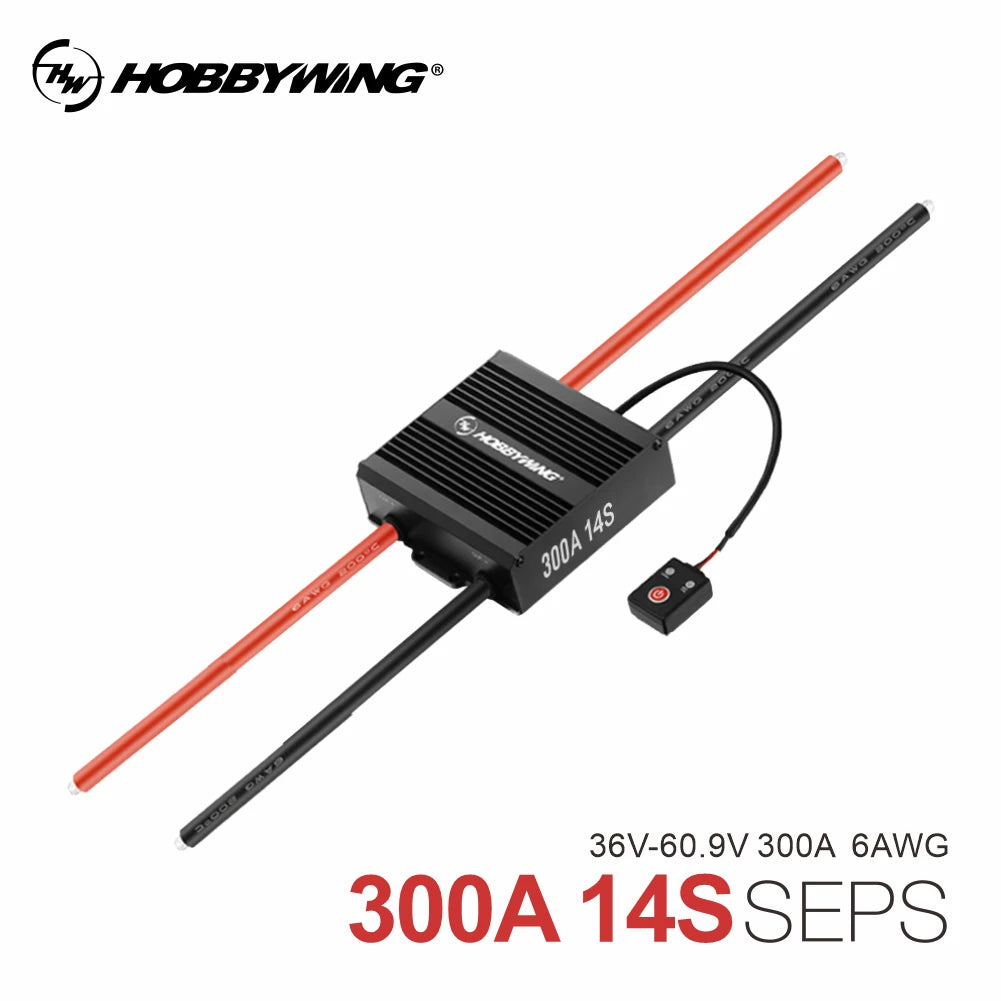

300A 14S/18S with switch cable
Silent Constant current stability
Advanced and Safty E-power Switch
Long lifespan,Waterproof,Dustproof,Impact resistant
300A-14S/18S High-pressure Safety E-power Switch
Advanced electronical switch
The advanced electronical switches are waterproofed, dustproofed and are impact resistant
to increase its lifespan. Control the on/off switch at any time to avoid the possibility
of the motor moving.
Note: After the switch is turned on, it will take approximately 4 seconds before it is powered on.
High voltage, high current
Supports high-voltage lithium polymer battery (standard voltage 3.85V), and up to 14S, 18S,
respectively. Up to 300A current can be used continuously in the heat dissipation
conditions of 5m/s wind speed.
Anti-Spark technology 4S The delayed power-on technology
The delayed power-on technology is a clever application which takes approximately 4 seconds
to be fully energized after power is turned on.It completely eliminates sparks and noises
generated during the power-up process and increase the longevity of the ESC.
IP67 protection, All-weather operational
Adopting the full glue encapsulation process, the protection level reaches IP67,and it is able to handle various harsh environments.
Long lifespan
Industrial grade materials, 1000+ hours of continuous power testing,300+ hours of continuous flight testing, multi-item strict testing to ensure flight safety.
