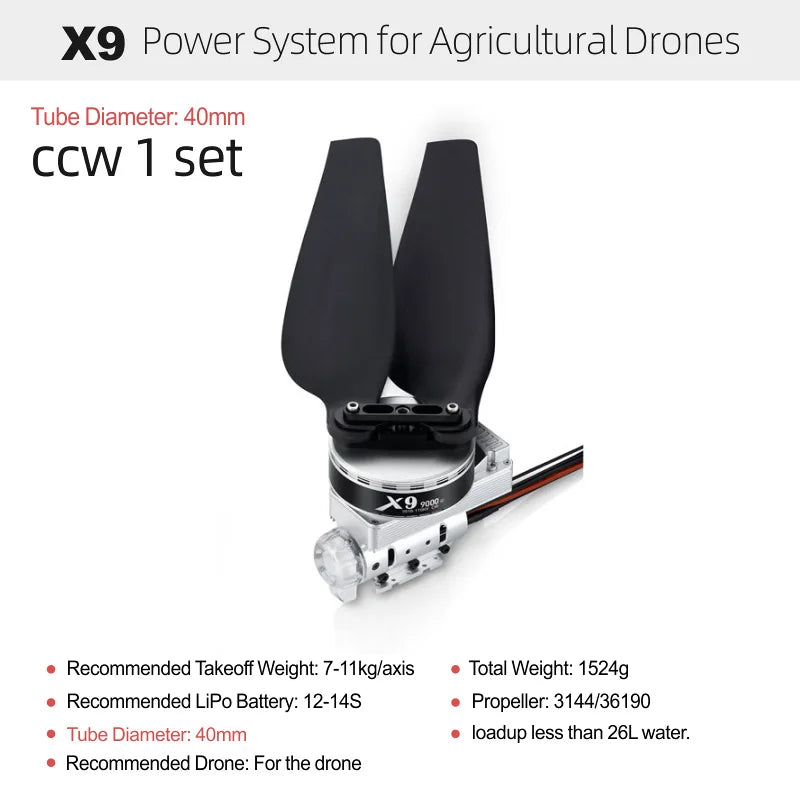

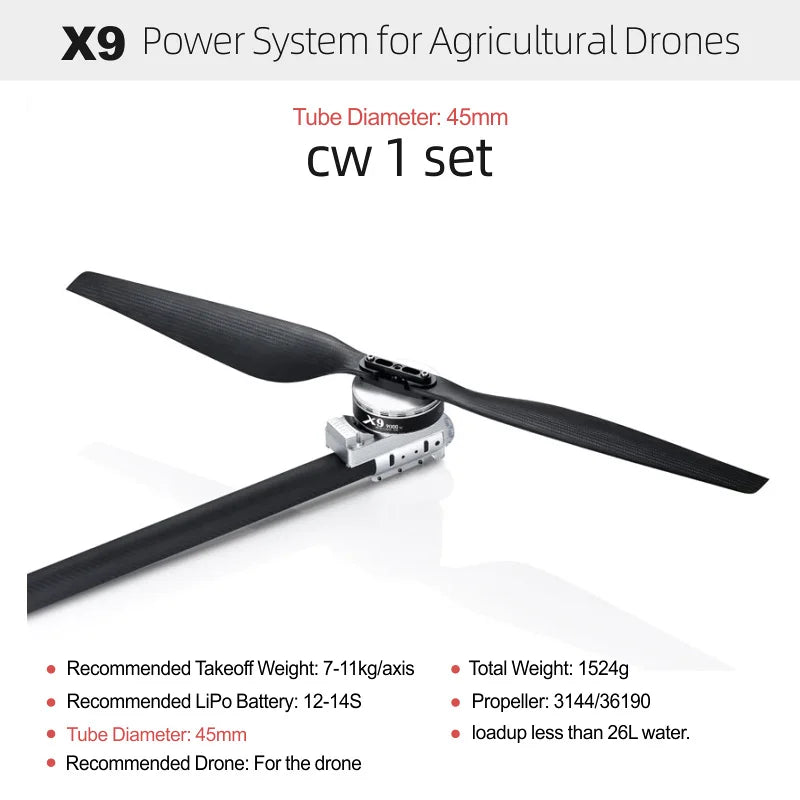

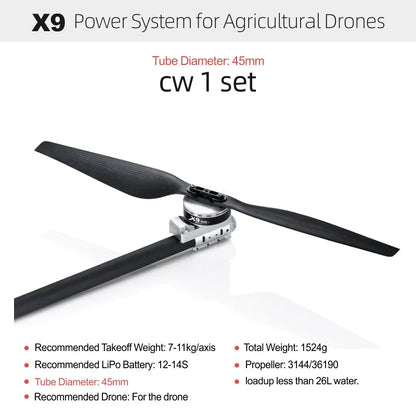

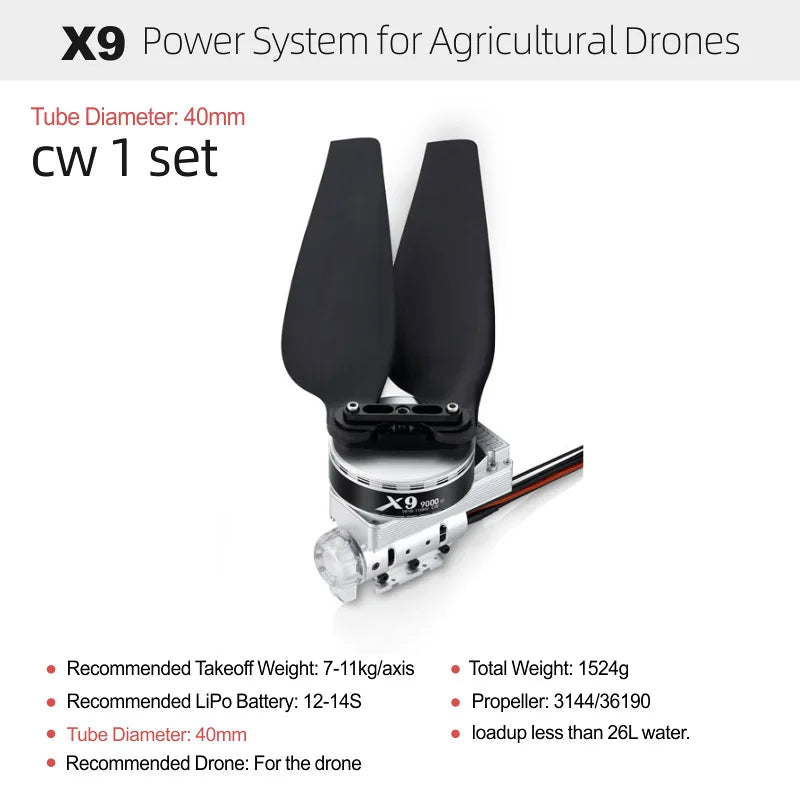

Hobbywing Original X9 Brushless Motor with ESC Power System 9616 110KV 12-14S 3411 Propeller For 40mm Tuble Agricultural Drones

$0.00 USD

促销售罄

Specifications

High-concerned chemical: None
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Is Batteries Included: No
For Vehicle Type: Airplanes
Remote Control Peripherals/Devices: Motor
Material: Composite Material
Brand Name: hobbywing
Origin: Mainland China
Recommend Age: 14+y
Use: Vehicles & Remote Control Toys
Description: rep

Description

Technical Parameters

Maximum pulling force: 21.5KG/axis

Recommended battery: 12S lipo

Recommended takeoff weight (single axis): 7.0-9.5KG

Weight (including propeller) 1450g

Dimensions: 151.2x133.3mm

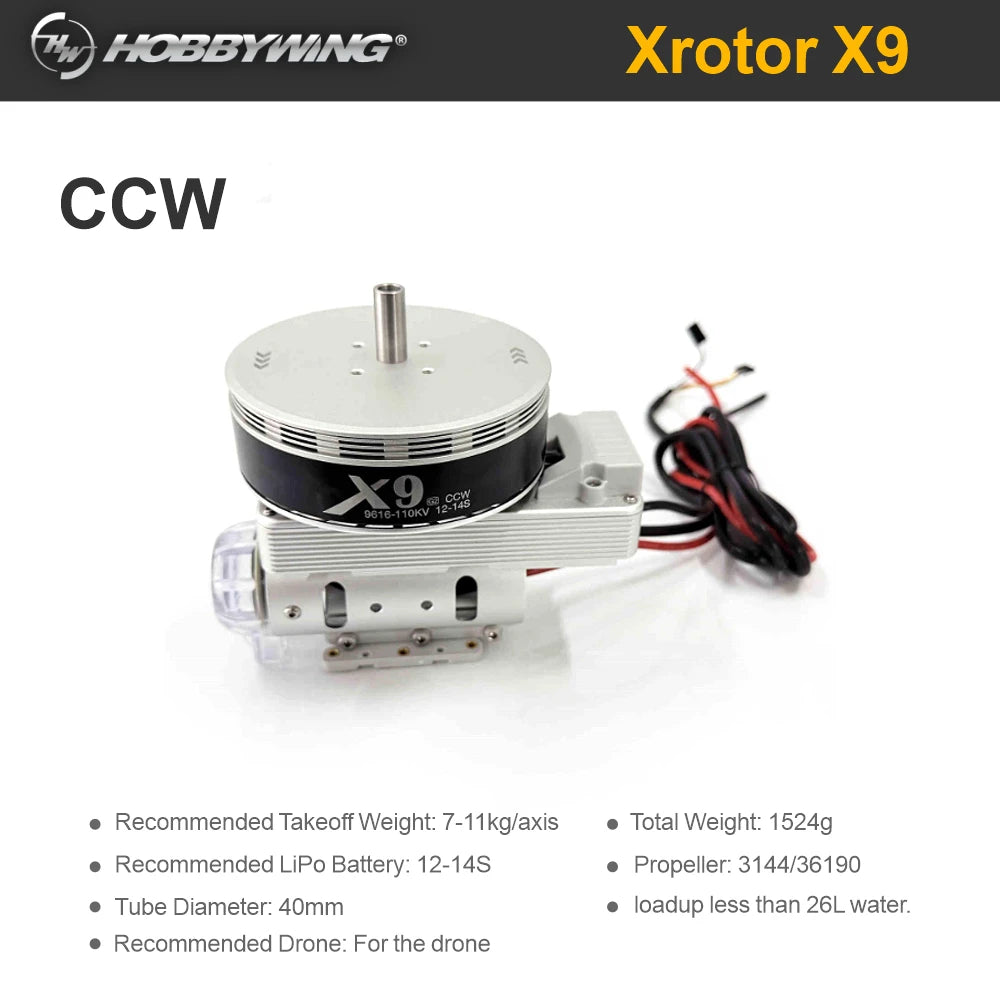

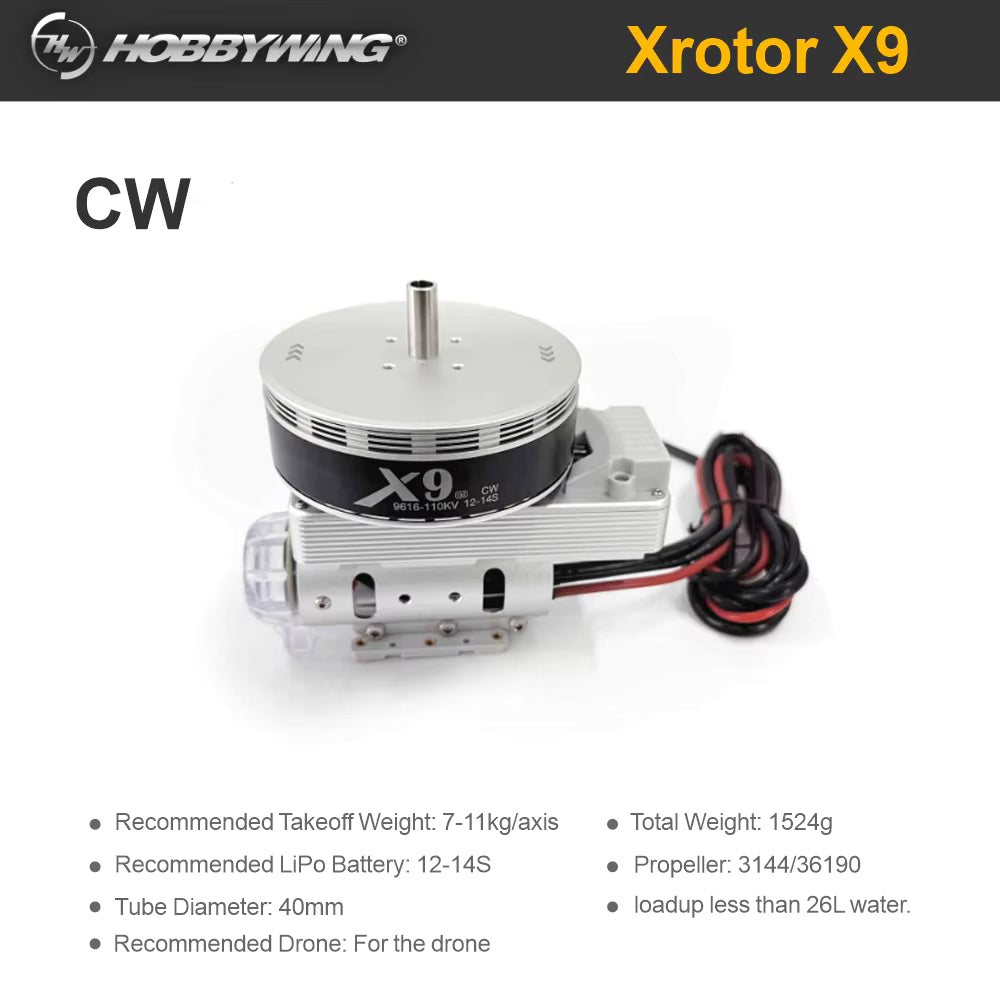

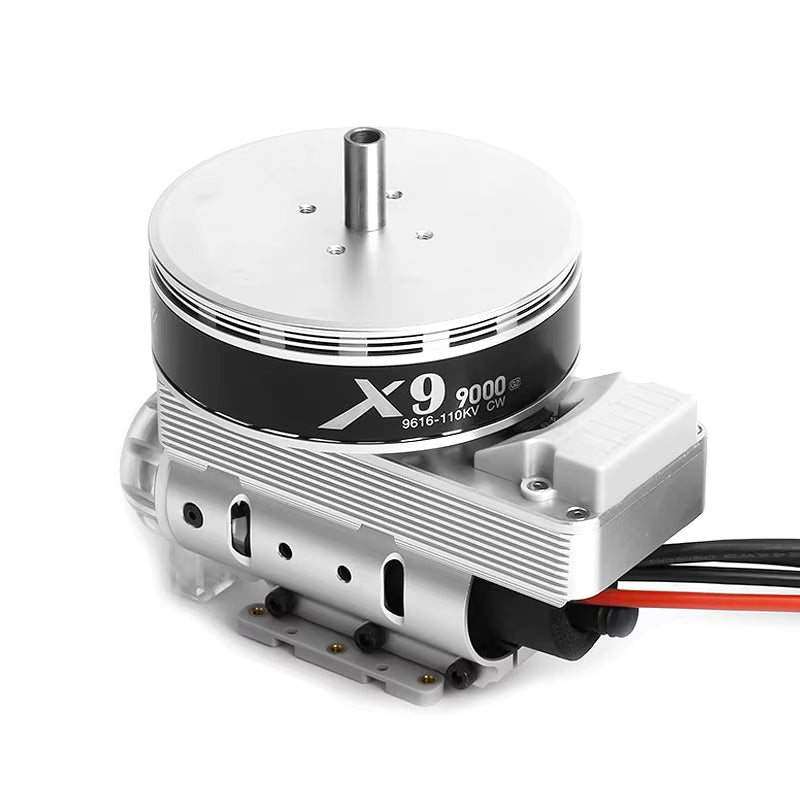

Motor

Stator size: 96x16mm

KV value: 110rpm/V

Internal resistance: 0.031ΩBE

Maximum current: 100A

Motor outer diameter: Φ103.5mm

Paddle clamp installation size: Φ25mm-4xM3; Φ31mm-4xM3

Bearing: imported ball bearing (waterproof)

Applicable carbon tube outer diameter: 40mm

ESC

Model: X-rotor/120A-FOC
Battery: 12-14S lipo
PWM input signal level: 3.3V/5V
Working pulse width: 1100μs-1940μs (curing, calibration is not supported)
Maximum allowable voltage: 52.2V
Maximum allowable current (continuous): 120A
Maximum allowable peak current (3 seconds): 150A
BEC: none

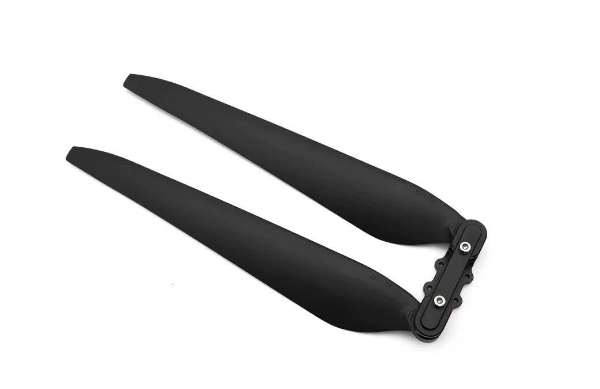

propeller

Material: Carbon fiber
Diameter / pitch: 34x11 inch

Product features
