original SIYI D6 Enterprise Propulsion System Self-Developed & Highly Integrated Both Straight & Foldable Propellers Compatible

Specifications

Electrified: No
High-concerned chemical: None
Size: 114*60mm
Package: Yes
Weight: 429g
Model Number: D6
Origin: Mainland China
Drones Accessories Type: Motor
Max Thrust: 6.5kg axis
Recommended Take off Weight: 2 to 2.5 kg axis
Recommended Battery: 12 to 14S LiPo
Cable Length: Power Cable 710mm Signal Cable 780mm
Protection Class: IPX5
Compatible Arm Tube Diameter: 30 mm
ESC Model: 55 A FOC
PWM Voltage Input: 3.3V 5 V
PWM Pulse Width: 1100 to 1940 μs
PWM Working Frequency: 50 to 500Hz
Max Voltage: 60 V
Max Current: 55 A
Communication Protocol: CAN
Firmware Upgrade: Supported
Digital Throttle: CAN Throttle

Description

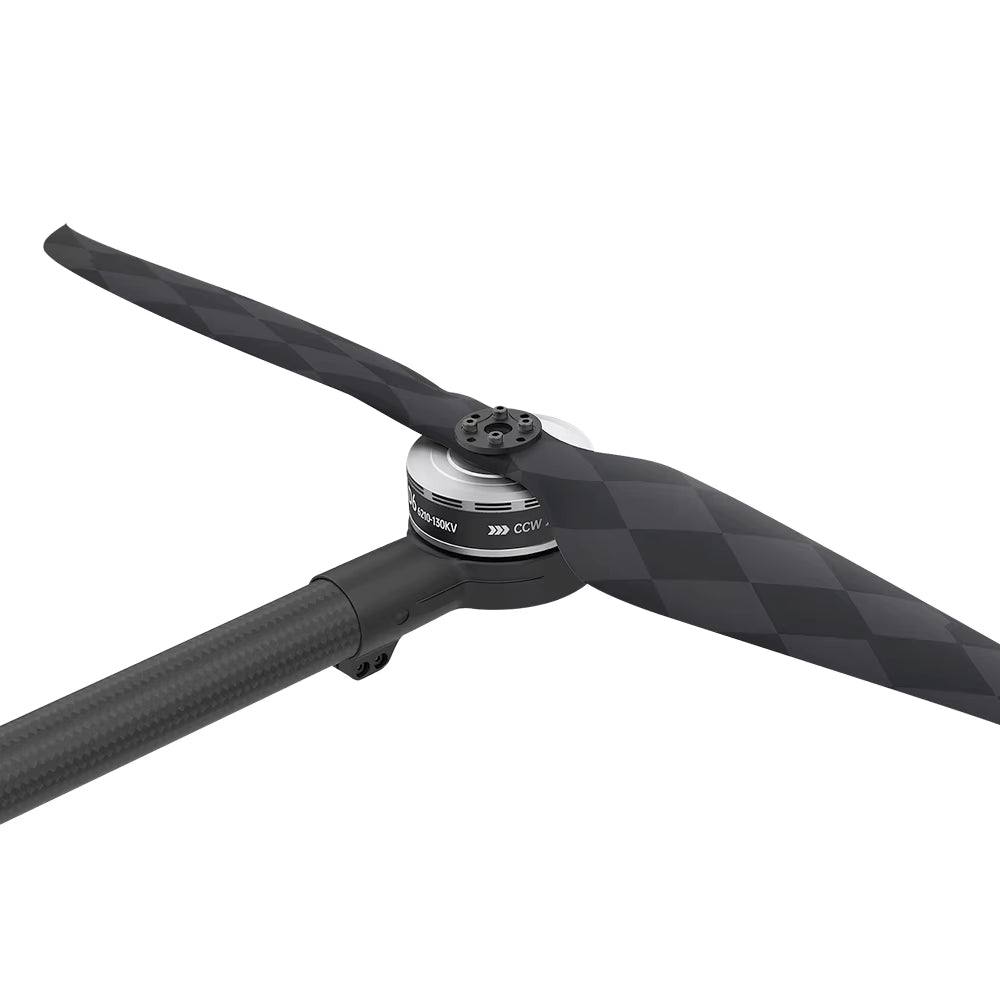

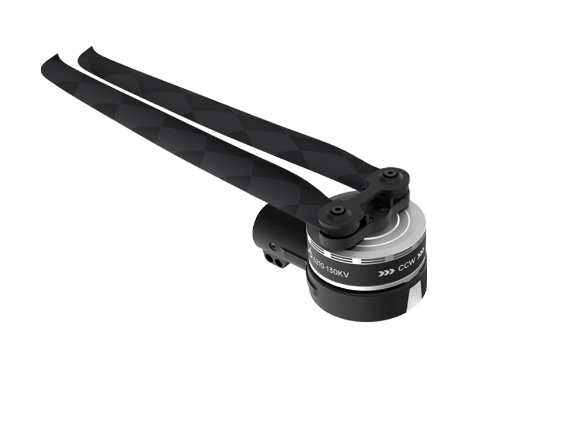

D6 Enterprise Propulsion System

Fully Self-Developed & Highly Integrated | Strong Thrust, Extraordinary Efficiency | Both Straight & Foldable Propellers Compatible | Dual Throttle Redundancy | Fault Storage, High Reliability | Complete ESC Protection Function | Outstanding Design, Top-Notch Craftsmanship | Both Open-Source & Commercial Ecosystem Compatible

Product Features

A Fully Self-Developed & Highly Integrated PropulsionSystem
Integrated design, stable and reliable, lightweight andcompact, efficient and collaborative, easy for solution provider andmaintenance.

Electronic Speed Controller
The electronic speed controller (ESC) is field-oriented control(FOC) and is developed by SlYl, which provides precise control and efficient response. The fault protection function has been tested by massive experiments and is safe, reliable and highly stable. lt supports data storage and real-time monitoring of system operation status, which is convenient for locating and analyzing problems. lt also adopts nano-coating technology and provides IPX5 protection level.

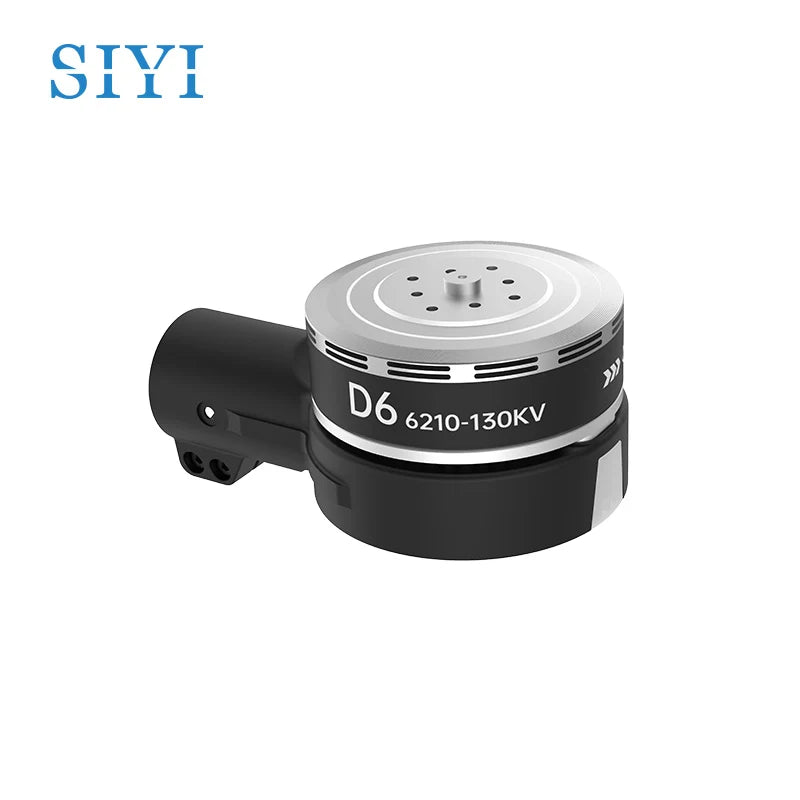

motor
The motor is SIYI strictly selected by craftmanship and materials, which comes with full CNC structure, imported bearings, imported permanent magnets, and high temperature resistant enameled wire. Strong thrust and good heat dissipation.

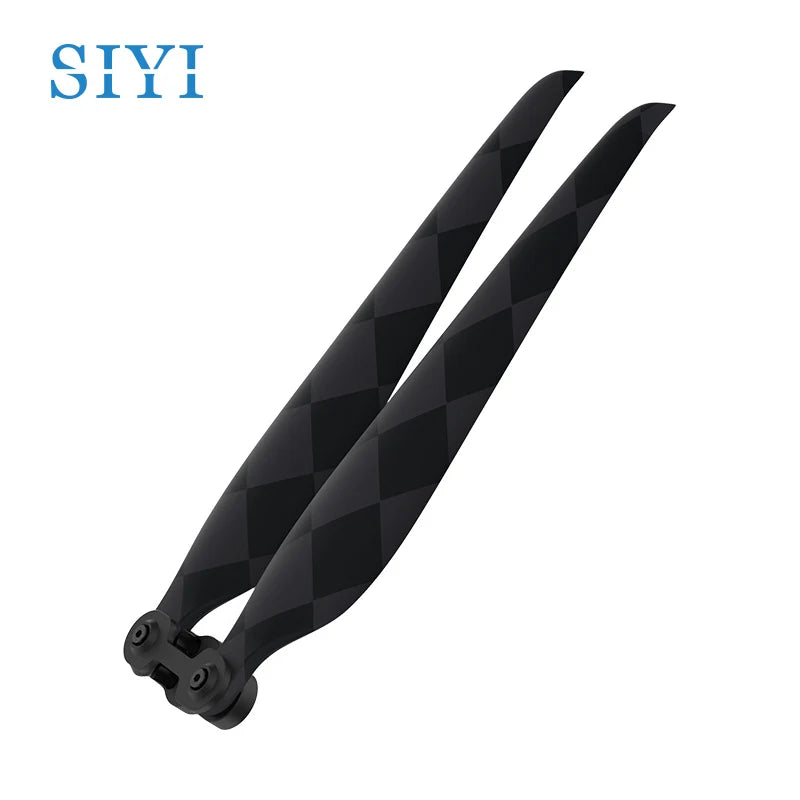

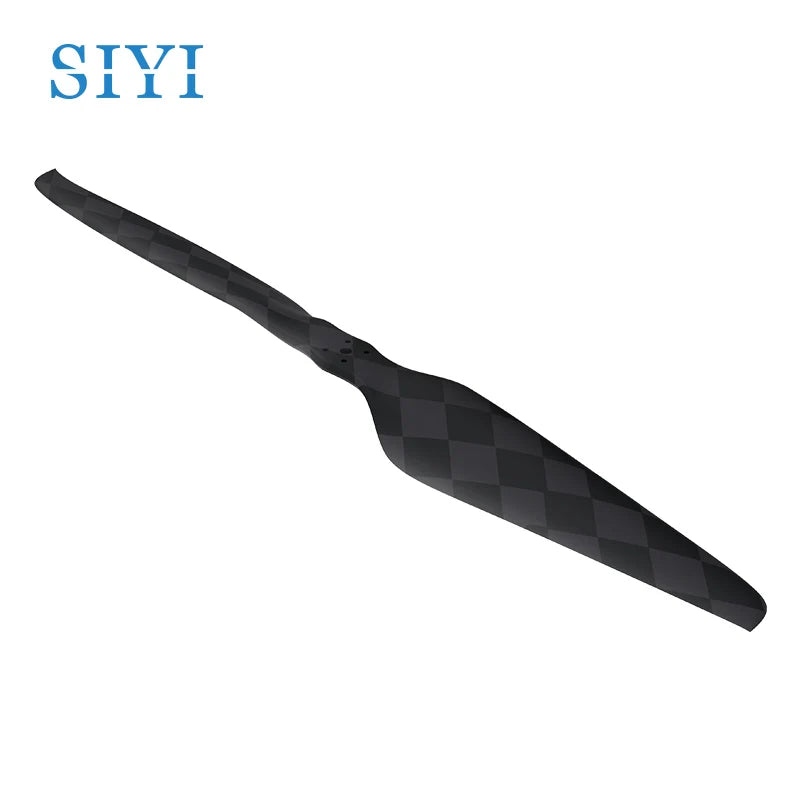

Propellers
Equipped with pure carbon fiber blades, lightweight material, high strength and durability, high rigidity and no deformation, corrosion resistance, stable performance, high precision and smooth operation.
