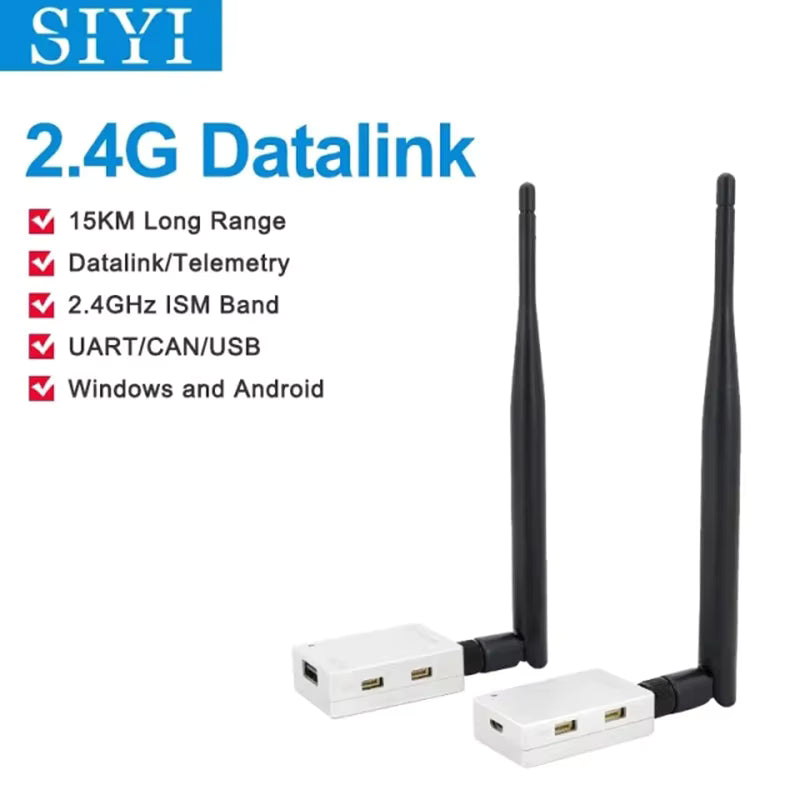

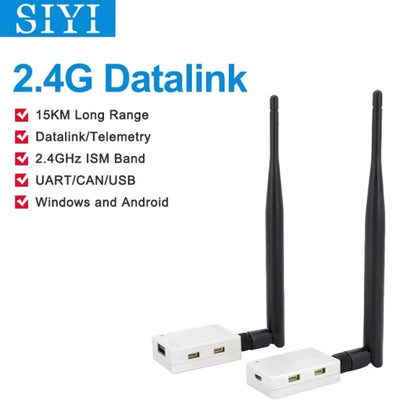

SIYI 2.4G Datalink Long Range 15km Transmission System with Mavlink Telemetry Various Ports

$0.00 USD

促销售罄

Specifications

Package: Yes

Weight：35g

Size: 50*35*16mm

Origin: Mainland China

Brand Name: Kasawabs

High-concerned chemical: None

Model Number: SIYI 2.4G Datalink

Description

SIYI 2.4G Datalink Long Range Transmission System with Mavlink Telemetry 15KM

Technical

Overall

Model: 2.4G Datalink
Frequency Band: 2400 to 2483 MHz
RF Power Output: 100 mW (20 dBm) E.I.R.P
Transmitting Speed: 325 kbps

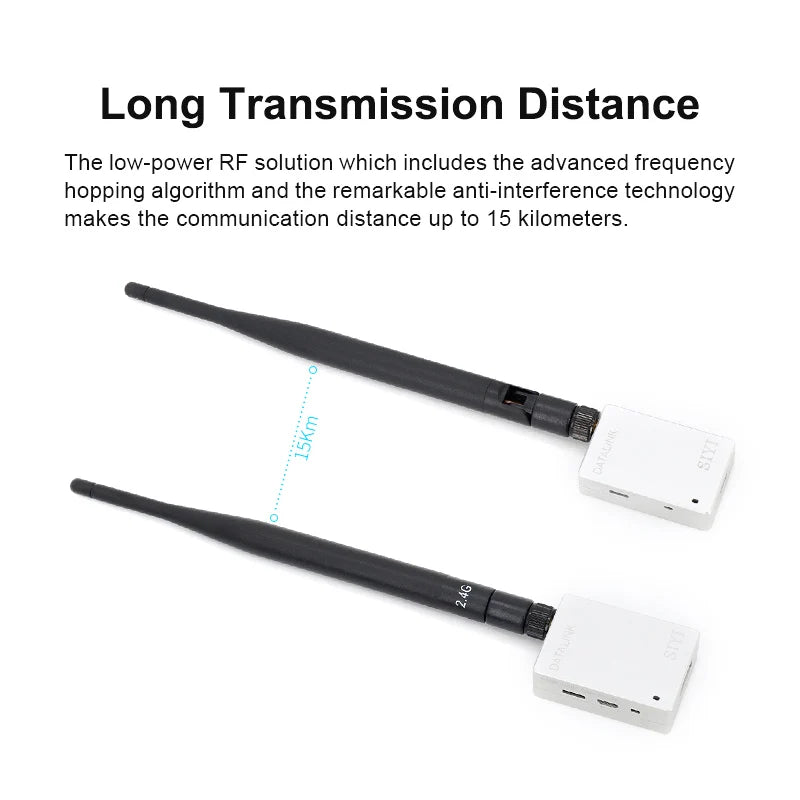

Range: 15 kilometers / 9.3 miles (unobstructed, free of interference)
UART Baud Rate: 115200
Compatible Open Source Flight Controllers:

Ground Unit

Dimensions (antenna detached): 50 x 35 x 16 mm
Weight: 35 g
Interface & Ports:
- Power Input: Micro-USB, 5 V / 2 A
- Firmware Upgrade: Micro-USB
- Data Output: USB-A
Antenna Gain: 5 dBi
Antenna Connector: SMA 180-degree Female
Working Voltage: 5 V
Working Current: 200 mA
Working Temperature: -10 to 55℃

Air Unit

Dimensions (antenna detached): 49 x 31 x 13.5 mm
Weight: 28 g
Interface & Ports:
- Data Output (to FC): UART / CAN (Optional)
Antenna Gain: 5 dBi
Antenna Connector: SMA 180-degree Female
Working Voltage: 5 V
Working Current: 80 mA
Voltage Telemetry Range: 15 to 50 V
Working Temperature: -10 to 55℃
