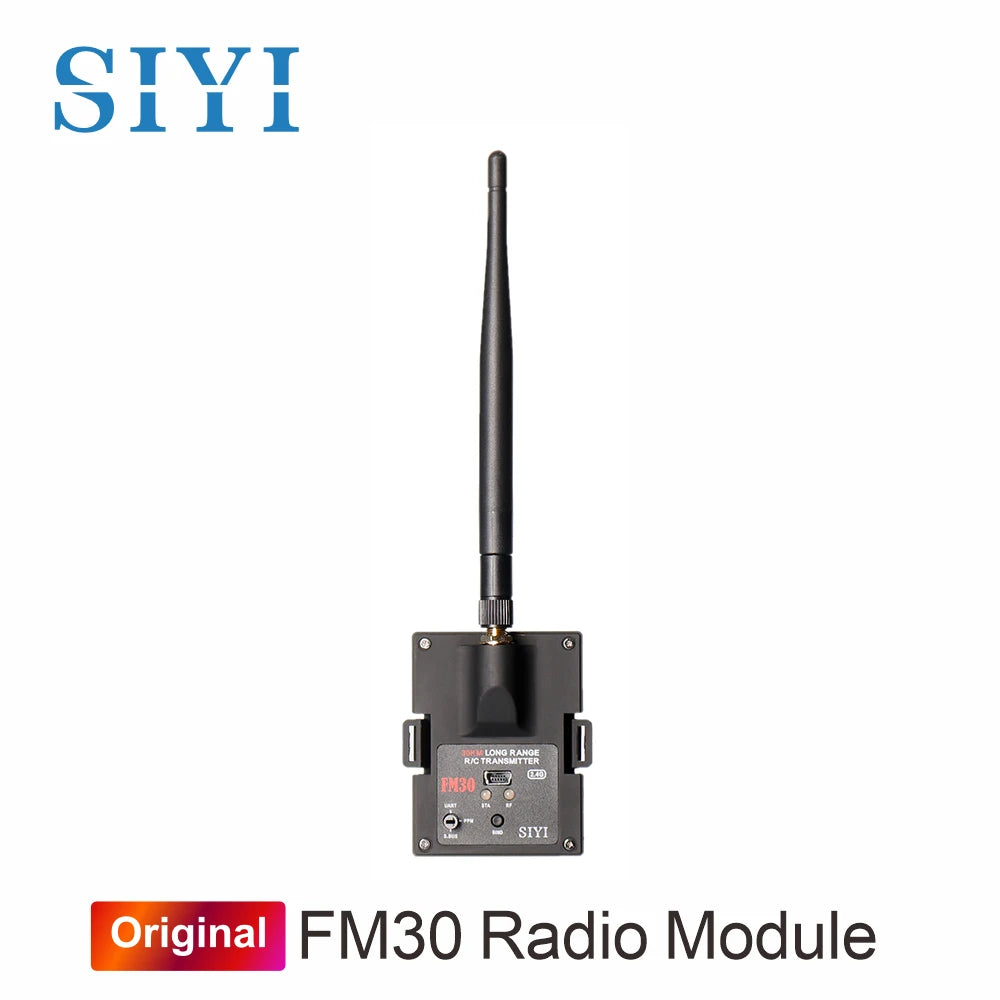

SIYI FM30 Radio Module 2.4G Transmitter with Bluetooth Long Range Mavlink Telemetry Datalink Mini Receiver Support OpenTX EdgeTX

2.4G ISM Band | 30KM Range | Built-in Bluetooth | Mavlink Telemetry | Support JR Bay | Support OpenTX / EdgeTX | Support Yaapu Script | Wireless Binding | OTA Firmware Update | Voltage Telemetry | Protocol, SBUS, PPM

Model: FM30

Frequency Band: 2400 to 2483 MHz
Latency: 10 ms
Control Range: 30 Kilometers / 18.6 Miles (unobstructed, free of interference)
Channels: 16 communication channels
Compatible RC Models: Planes, Copters, Gliders, Multi-Rotors, Vehicles, Boats, Robotics

Transmitter

Frequency Band: 2400 to 2483 MHz
Latency: 10 ms
Control Range: 30 Kilometers / 18.6 Miles (unobstructed, free of interference)
Channels: 16 communication channels
Compatible RC Models: Planes, Copters, Gliders, Multi-Rotors, Vehicles, Boats, Robotics

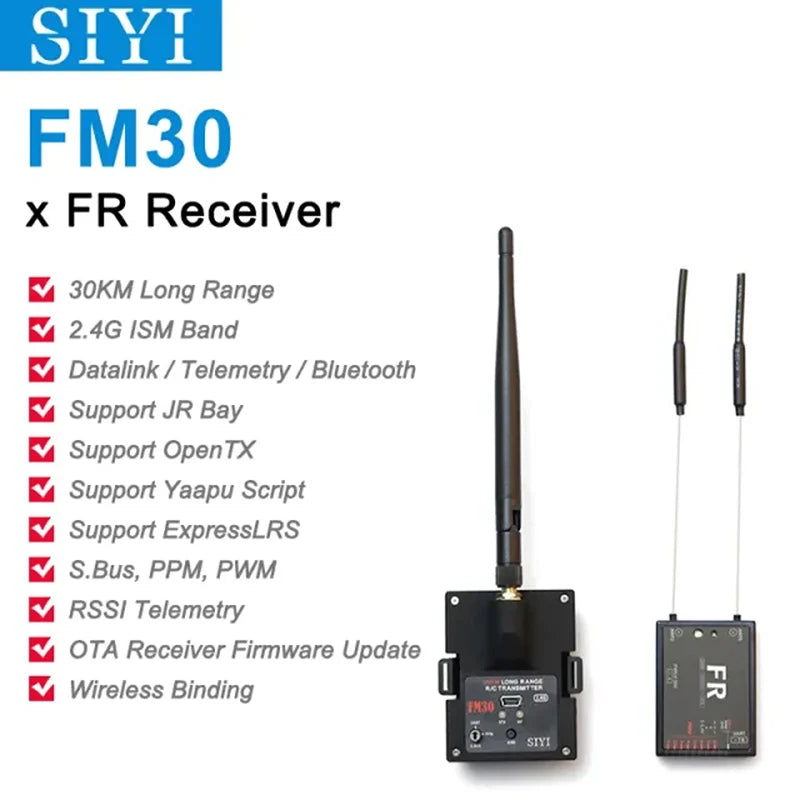

FR Receiver

Signal Output: 16 channels of S.BUS, 8 channels of PPM, 8 channels of PWM
Interface & Ports:
- SBUS & PWM: Pins
- Datalink (to FC): UART 4-Pin
- Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 51.5 x 38 x 13 mm
Weight (antenna excluded): 20 g
Antenna Gain (standard omni): 2 dBi
Working Voltage: 5 to 8.4 V
Voltage Telemetry Range: 0 ~ 50 V
Power Input: 14.8 to 50.4 V (4S to 12S)
Working Temperature: -10 to 55℃

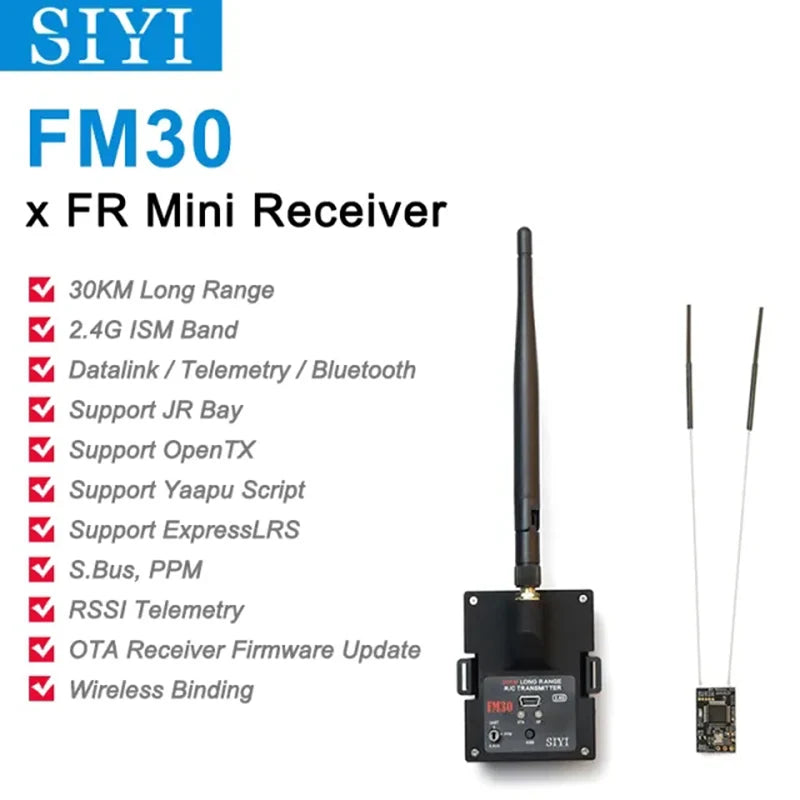

FR Mini Receiver

Signal Output: 16 channels of S.BUS, 8 channels of PWM
Interface & Ports:
- SBUS & PWM: Pins
- Datalink (to FC): UART 4-Pin
- Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 24 x 15 x 3 mm
Weight: 1.5 g
Antenna Gain (standard omni): 2 dBi
Working Voltage: 5 V
Voltage Telemetry Range: 0 ~ 26 V
Working Temperature: -10 to 55℃
