Specifications
Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)
Power Source: DC
Inbox adaptor: Yes
High-concerned chemical: None
Size: 276x154x216mm
Package: Yes
Weight: 7.5KG
Model Number: TA3200 TA3200HV TA3200UHV
Power Source: DC
Origin: Mainland China
Drones Accessories Type: charger
Description

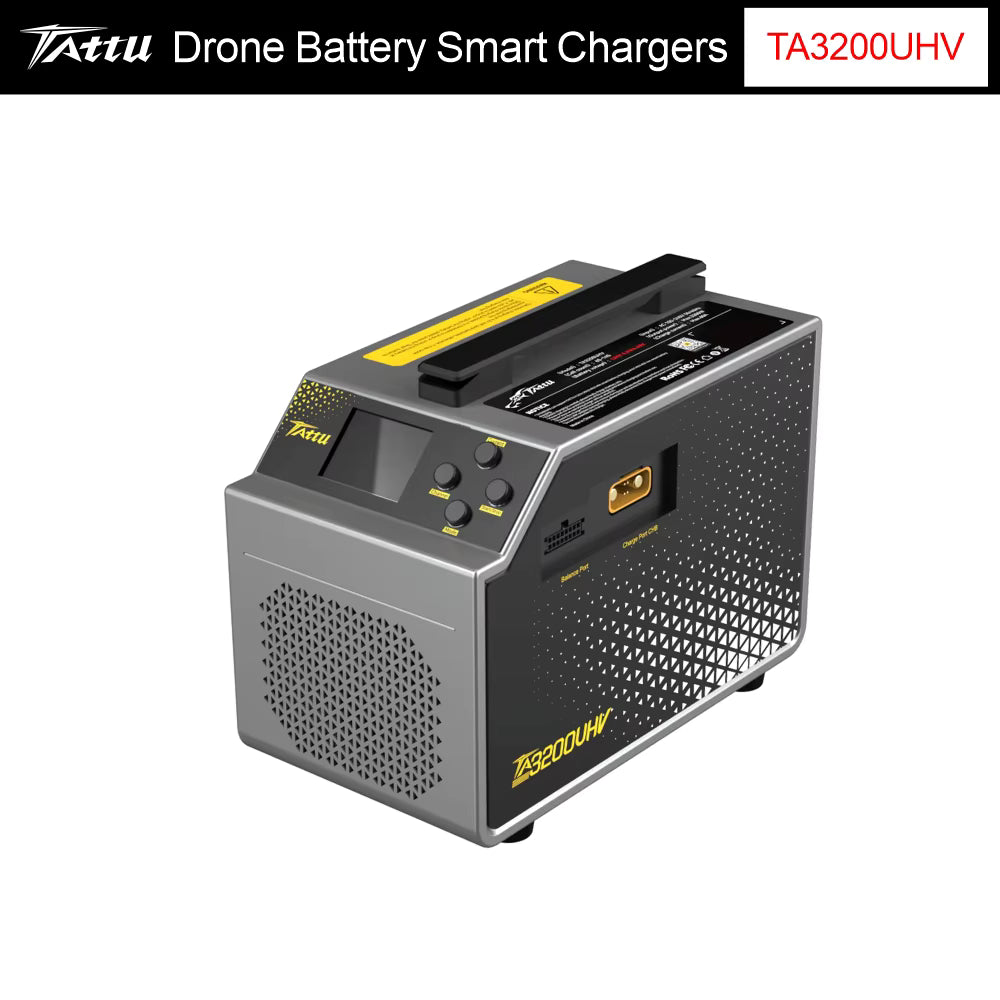

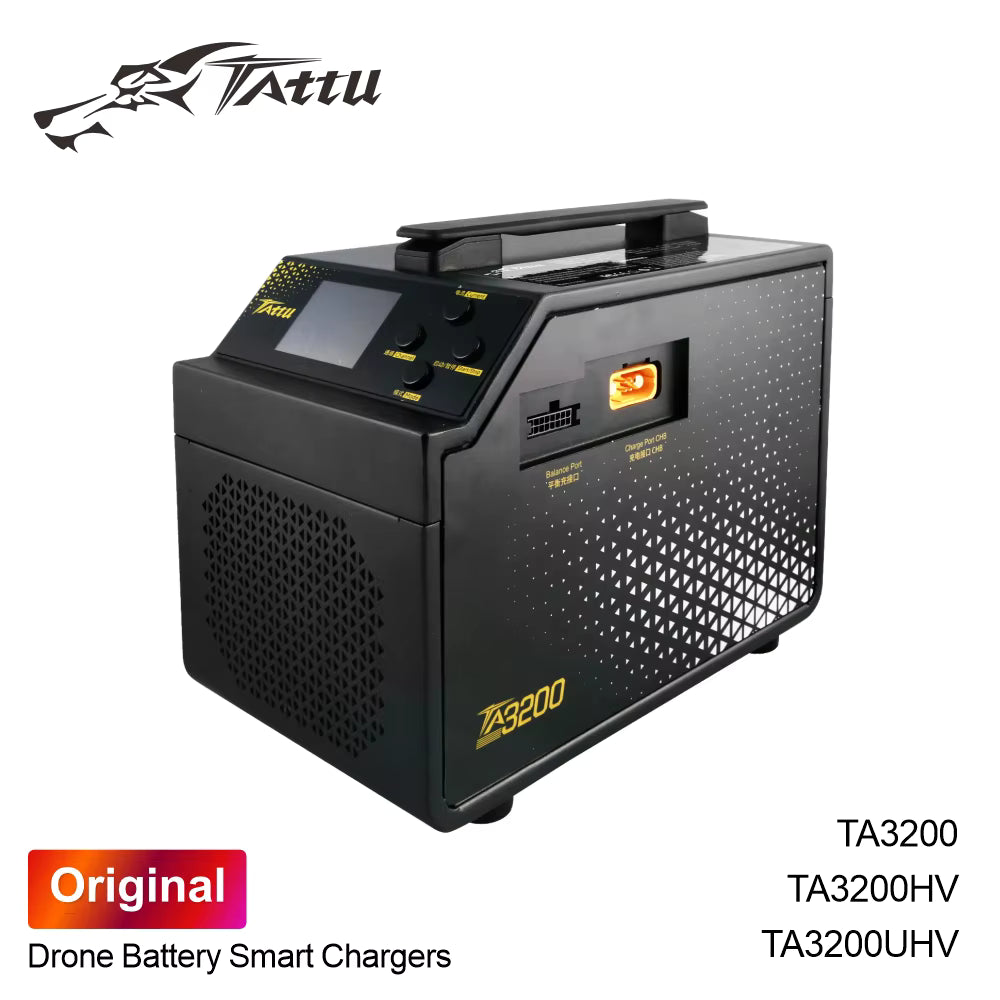

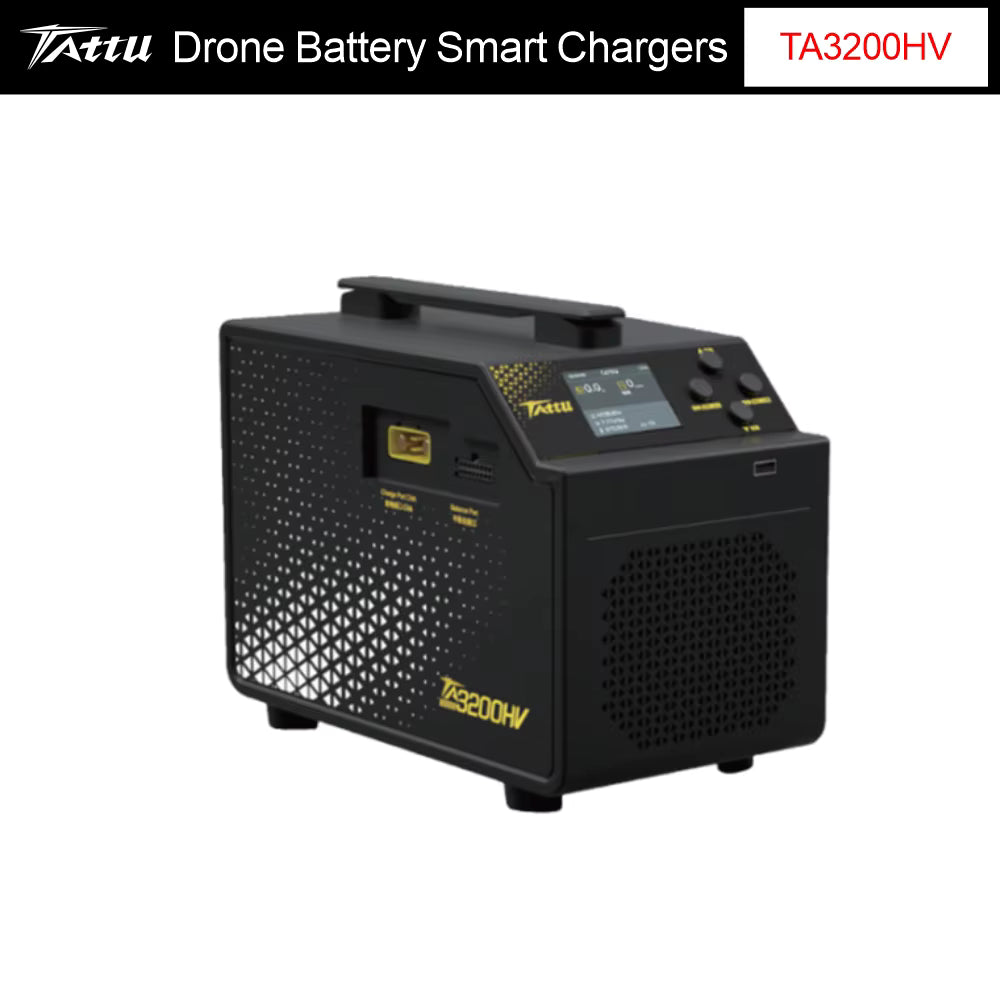

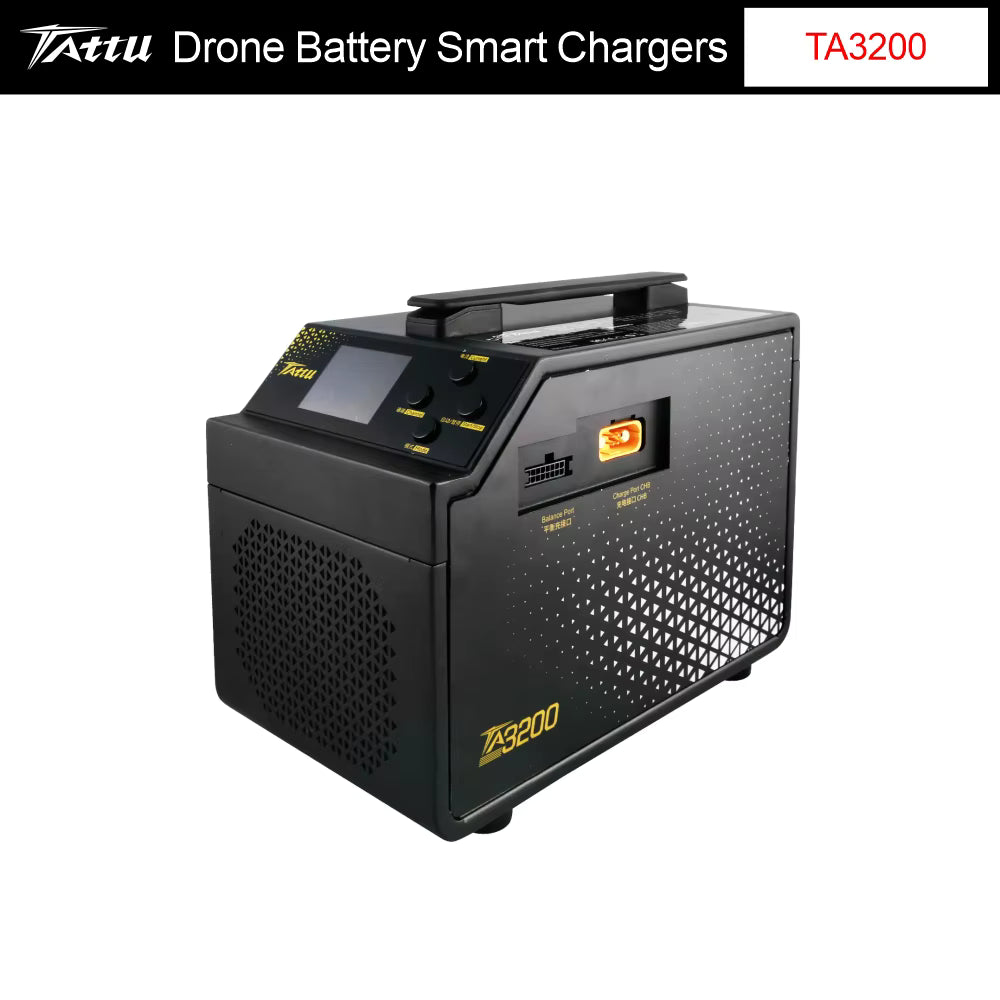

The all new TA3200 is Tattu’s latest member in its premium intelligent Smart charger line; able to charge safely and conveniently Tattu/GensAce Smart batteries like our TATTU Plus 1.0 16000mAh Compact Smart Battery; as well any other soft pack models ranging from 6S to 14S.
The TA3200 charger features 2 powerful charge channels with its maximum power reaching up to 3200W/60A and recognizes batteries equipped with the DroneCAN protocol standard; therefore keeping primarily safety as well smooth and simple operation as priority.
Additionally; 3 performance optimized charge modes can be activated: fast charging mode; normal charging mode and storage mode for standard LiPo style batteries as well HV battery technology. In normal soft pack operation charge mode; there are three charging current choices 6A; 16A and 32A with 220V input or 10A;16A; 22A with 110V input.
Spec.
Models: TA3200
AC Input: 100-240V
Max Output Power: AC100-110V 1200W; 220-240 3200W
Charge Current: Up to 60A
Size: Approximately 276x154x216mm
Weight: Approximately 6000g
Suited for battery type: non-smart LiPo (4.20V) batteries and Tattu smart battery. For 6S-10S Lipo battery with JST-XHR balancer, a balance board(TAA005) is required for charging (not included in TA3200 / TA3200UK / TA3200HV / TA3200UHV).
